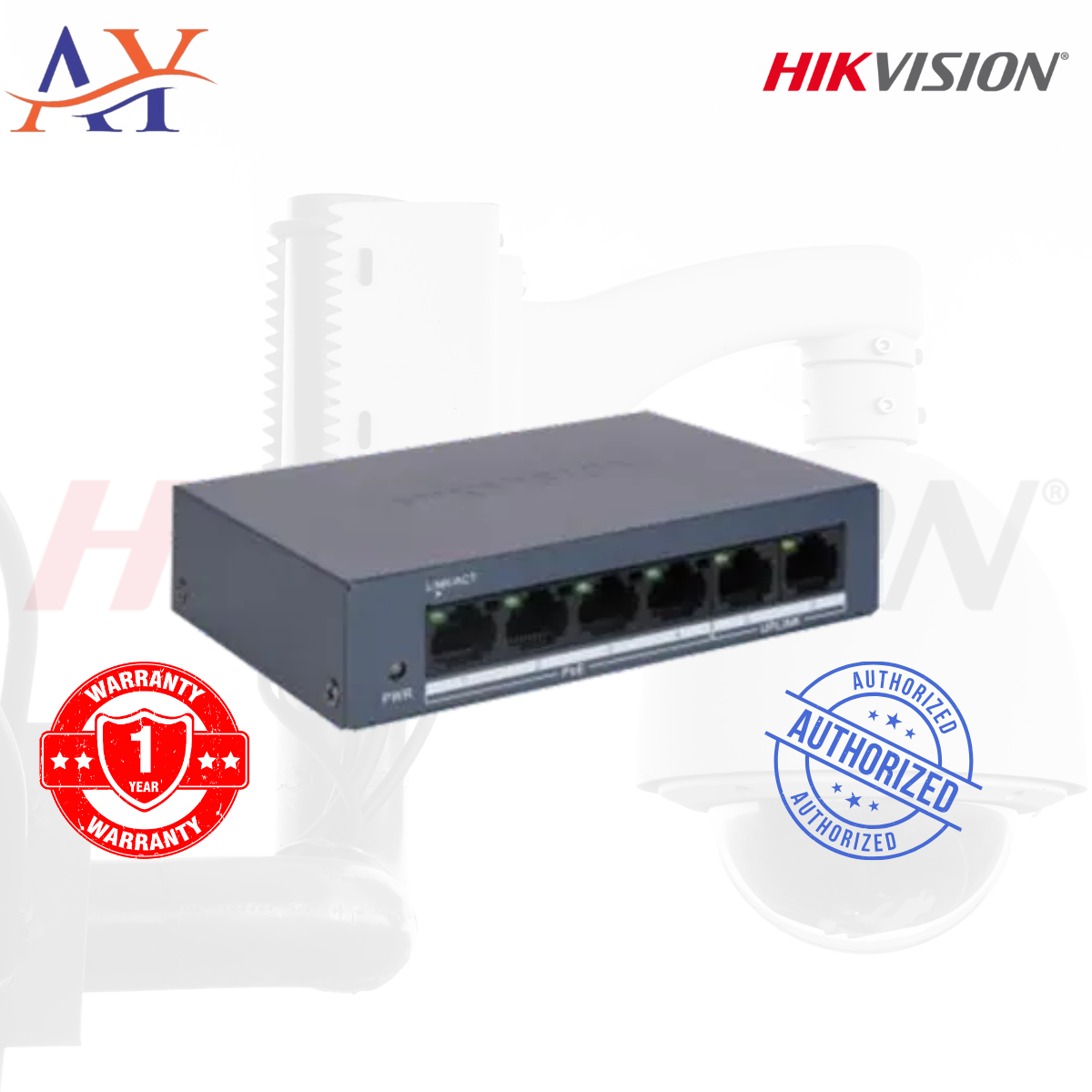

Hikvision DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged POE Switch

Hikvision DS-3E0106MP-E/M 4 Port Fast Ethernet Unmanaged POE Switch

$ 17.80
Follow:

Acoustic Benefits

Mid Tones
High Tones
Sound Absorption

Product Features

Pin Able
Easy To Install
Peel And Stick
Customizable
Recycled PET
Locally Made
Acoustic NRC
Quick Ship Item
Specification General Shell Metal material, fan-free design Net Weight0.19 kg (0.42 lb) Gross Weight0.63 kg (1.39 lb) Dimensions (W × H × D)121.10 mm × 27.60 mm × 83.10 mm (4.77” × 1.09” × 3.27”) Operating Temperature0 °C to 40 °C (32 °F to 104 °F) Storage Temperature-40 °C to 85 °C (-40 °F to 185 °F) Operating Humidity5% to 95% (no condensation) Relative Humidity5% to 95% (no condensation) Power Supply48VDC, 1.04A Max. Power Consumption50 W Power Consumption in Idle1.6 W Installation ModeDesk-Mounted,Wall-Mounted Surge Protection2 KV Network Parameters Ports4 × 10/100 Mbps PoE port,2 × 10/100 Mbps RJ45 port MAC Address Table2 K Switching Capacity1.2 Gbps Packet Forwarding Rate0.89 Mpps Internal Cache768 Kbits PoE Power Supply PoE Power Pin End-span: 1/2(-), 3/6( ) PoE Port PoE: Ports 1 to 4 PoE Power Budget45 W Approval EMCCE-EMC (EN 55032: 2015 A11: 2020, EN IEC 61000-3-2: 2019, EN 61000-3-3: 2013 A1: 2019, EN 50130-4: 2011 A1: 2014, EN 55035: 2017 A11: 2020) Safety CB (AMD1:2009, AMD2:2013, IEC 62368-1: 2014 (Second Edition), CE-LVD (EN 62368-1: 2014 A11: 2017) Chemistry CE-RoHS (2011/65/EU),WEEE (2012/19/EU),Reach (Regulation (EC) No.1907/2006)

Download

Installation Guidelines

Always make sure the wall has been wiped clean prior to installation.

Temporary installation :

3M (Picture hanging strips) or double sided tape can be used.Glue or staple picture hanging strip to the back of the acoustic panels. Because of their porous sound absorbing nature they do not stick as well to the 3m/double sided strip as the wall will.

Download Installation Guide
Permanent installation:

A construct glue such as liquid nail or Selleys quick grip can be used. We also sell Roostas Braided Belt- The Savannah- Redwhich provide high fast tack and have been specifically designed for acoustic panels.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.
