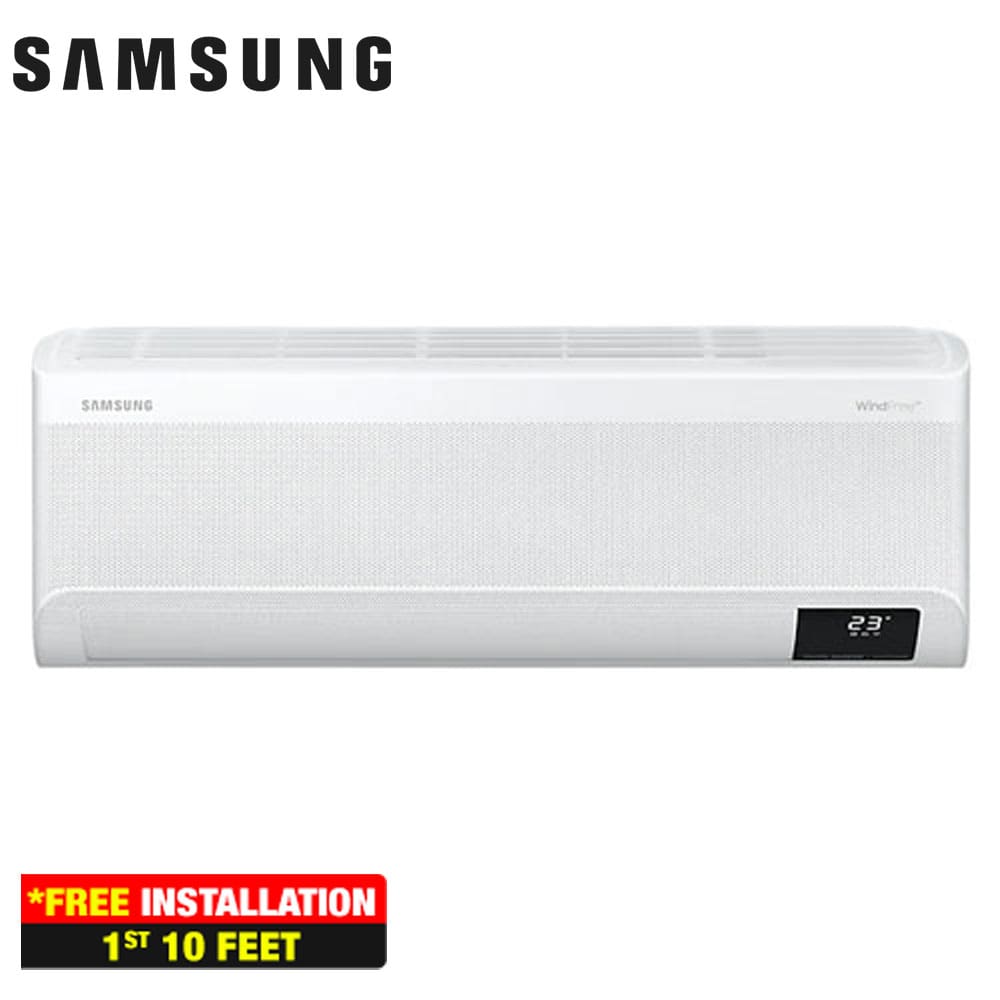

Samsung 1.5HP Wind Free Inverter Split T…

Samsung 1.5HP Wind Free Inverter Split T…

$ 95.15
Follow:

Acoustic Benefits

Mid Tones
High Tones
Sound Absorption

Product Features

Pin Able
Easy To Install
Peel And Stick
Customizable
Recycled PET
Locally Made
Acoustic NRC
Quick Ship Item
Description Capacity • Capacity (Cooling, kJ/h): 12660 kJ/hW • Capacity (Cooling, Min – Max, kJ/h): 4750 – 14770 kJ/hW Noise Level • Noise Level (Indoor, High/Low, dBA): 38/21 dBA • Noise Level (Outdoor, High/Low, dBA): 50 dBA Electrical Data • Power Source(Φ/V/Hz): 1 / 220-240 / 60 • Power Consumption(Cooling, W): 1250 W • Operating Current(Cooling, A): 8.0 A Physical Specification • Net Dimension (Indoor, WxHxD, mm): 820*299*215 mm • Net Dimension (Outdoor, WxHxD, mm): 660*475*242 mm • Net Weight (Indoor, kg): 9.2 kg • Net Weight (Outdoor, kg): 19.1 kg Technical Information • Piping Length (Max, m): 15 m • Piping Height (Max, m): 7 m • SVC Valve (Liquid (ODxL)): 6.35 • SVC Valve (Gas (ODxL)): 9.52 • Moisture Removal (l/hr): 1.5 l/hr • Air Circulation (Cooling, ㎥/min): 10.7 ㎥/min • Refrigerant (Type): R32 • Refrigerant (Charging, tCO2e): 0.34 tCO2e • Low Ambient (Cooling, ℃): 16~46 ℃ • Outdoor Unit (Compressor Type): BLDC • Outdoor Unit (Anti-Corrosion Fin): Yes Air Flow • WindFree Cooling: Yes • Air Direction Control (Up/Down): Auto • Air Direction Control (Left/Right): Auto • Air Flow Control Step (Cool/Fan): 5/4 Air Purification • PM 1.0 Filter: No • Tri Care Filter: No • Easy Filter Plus (Anti-Bacteria): Yes • Auto Clean (Self Cleaning): Yes Convenience • SmartThings: No • AI Auto Cooling: No • Motion Detect Sensor: No • Freeze Wash: No • Beep On/Off: Yes • 24-Hour Timer: Yes • Auto Restart: Yes Operating Mode • Auto Mode: Yes • Fast Cool: Yes • Good Sleep: Yes • Eco Mode: Yes • Dehumidification: Yes • Fan Mode: Yes • Quiet: Yes Note: Available in Visayas and Mindanao only

Download

Installation Guidelines

Always make sure the wall has been wiped clean prior to installation.

Temporary installation :

3M (Picture hanging strips) or double sided tape can be used.Glue or staple picture hanging strip to the back of the acoustic panels. Because of their porous sound absorbing nature they do not stick as well to the 3m/double sided strip as the wall will.

Download Installation Guide
Permanent installation:

A construct glue such as liquid nail or Selleys quick grip can be used. We also sell Luminous Rapid Deco 1200MM 3 Blade Ceiling Fan (Cherry Red)which provide high fast tack and have been specifically designed for acoustic panels.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.
