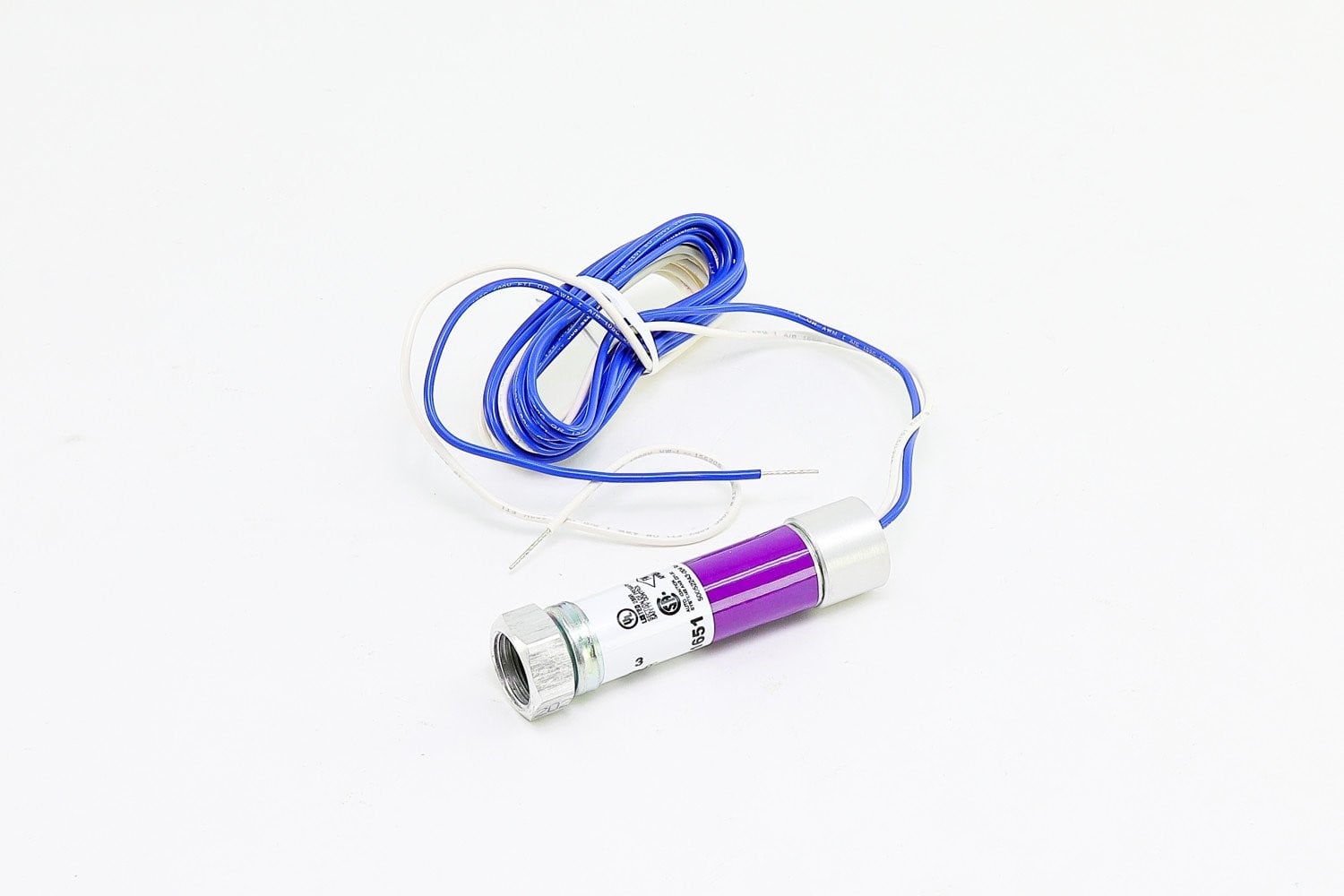

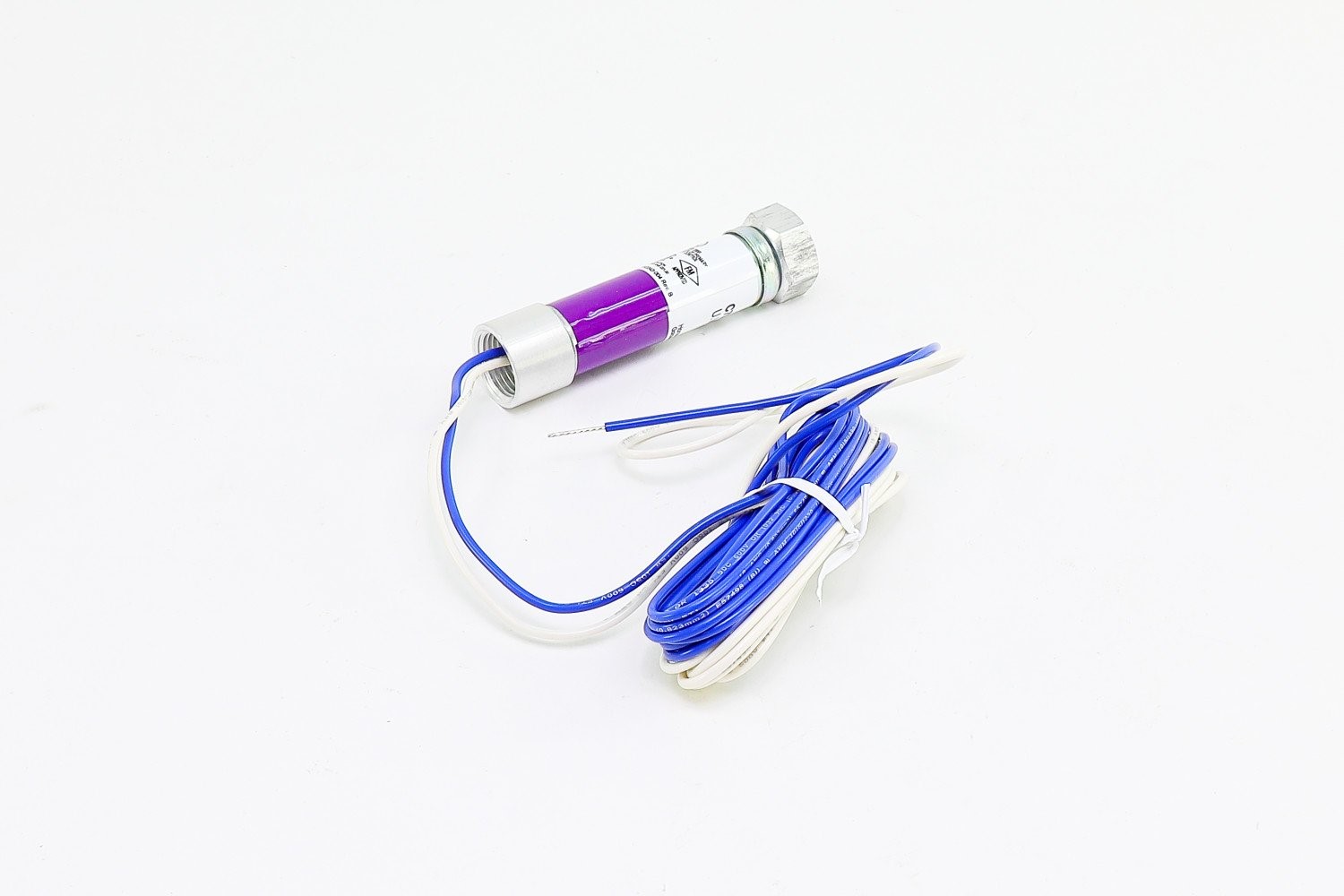

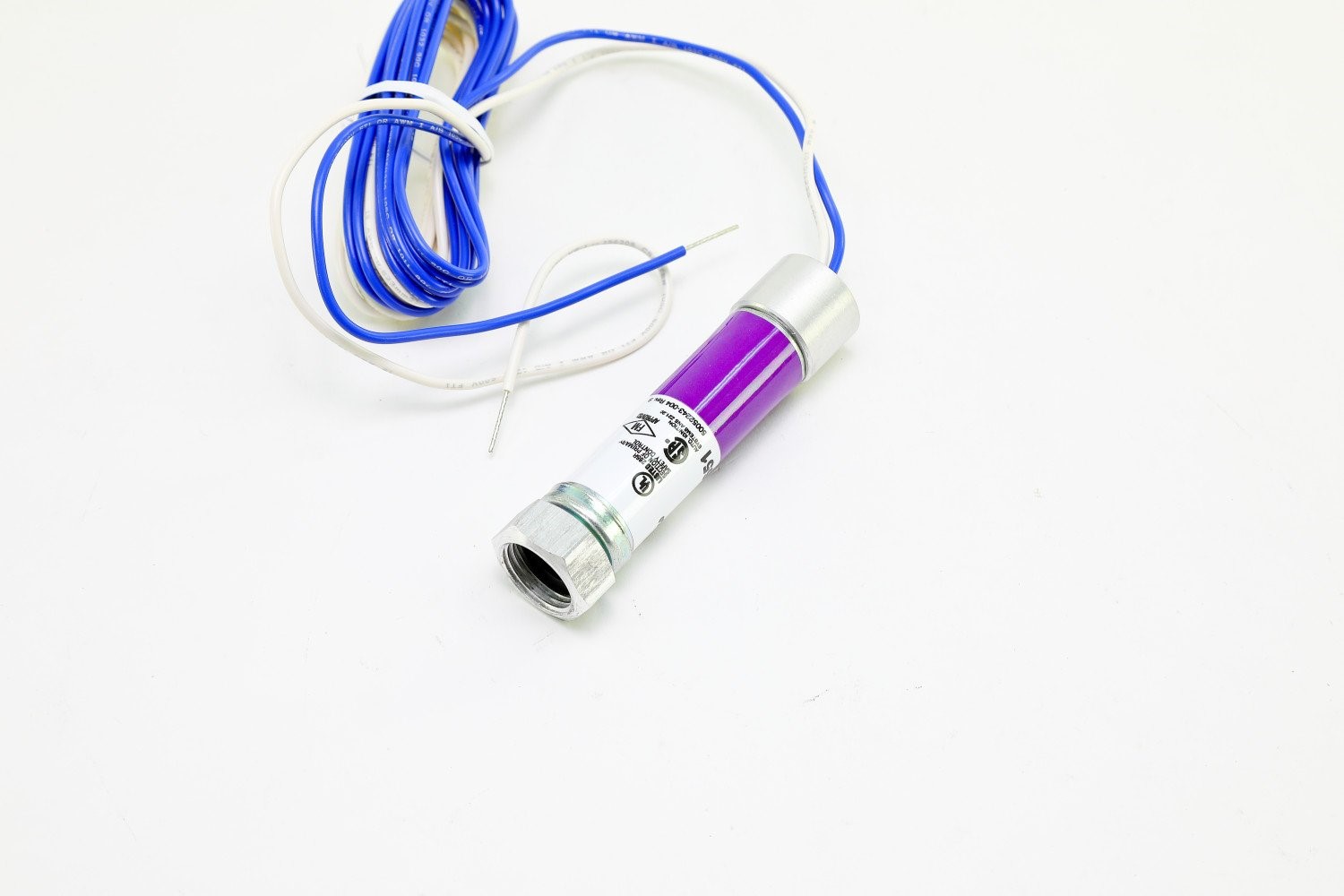

C7027A1049 Honeywell Minipeeper UV Flame Sensor

C7027A1049 Honeywell Minipeeper UV Flame Sensor

$ 97.63
Follow:

Acoustic Benefits

Mid Tones
High Tones
Sound Absorption

Product Features

Pin Able
Easy To Install
Peel And Stick
Customizable
Recycled PET
Locally Made
Acoustic NRC
Quick Ship Item
UPC: 85267038768 Minipeeper Ultraviolet Flame Detector, Used for Coal, Gas and Oil Fired Burners, 96 Inch Lead Length, 0/215 Degree Ambient Temperature, Mounts on 1/2 Inch Sighting Pipe Using A Integral Collar, Includes 1/2 Inch NPT Spud Connector Overview The Honeywell C7027A1049 is a “Minipeeper” ultraviolet (UV) flame sensor engineered for combustion safety systems. It detects the UV radiation emitted by a flame and interfaces with flame safeguard controllers to confirm flame presence. Its compact form factor and standard ½-inch mounting allow it to be installed in tight locations or sight pipes without excessive modification. Specifications Specification Value / Description Model C7027A1049 Sensor Type Ultraviolet (UV) detector Operating Temperature Range Approx. 0 °F to 215 °F (−18 °C to 102 °C) Maximum Sealing Pressure Up to 5 psi (with proper installation) Mounting Collar ½-inch sight pipe (integral collar) Lead Length Typically 8 ft Parallel Wiring Option May allow two sensors in parallel for extended coverage Housing & Construction Rugged encapsulated design for durability Application Flame supervision for gas, oil, or combined burners Features & Benefits Compact “Minipeeper” design fits in restricted spaces UV detection is fast and reliable, even under low flame conditions Option to wire two sensors in parallel for better flame path coverage Rated to seal up to 5 psi when mounted correctly Rugged housing resists harsh combustion environment stresses Standard ½-inch mounting simplifies installation Applications Boiler, furnace, and burner flame detection Installations with limited clearance or access Upgrades or replacements of existing UV sensors Safety systems requiring dependable flame supervision Installation & Maintenance Notes Mount in a correct sight pipe for clear flame path Use black iron or carbon steel sight tubing to minimize reflections Keep sensor wiring separated from high-voltage leads Regularly inspect and clean optical path and sensor tip Replace the sensor if UV response degrades or fails safety verification C7027A1049 Honeywell Minipeeper UV Flame Sensor Datasheet
