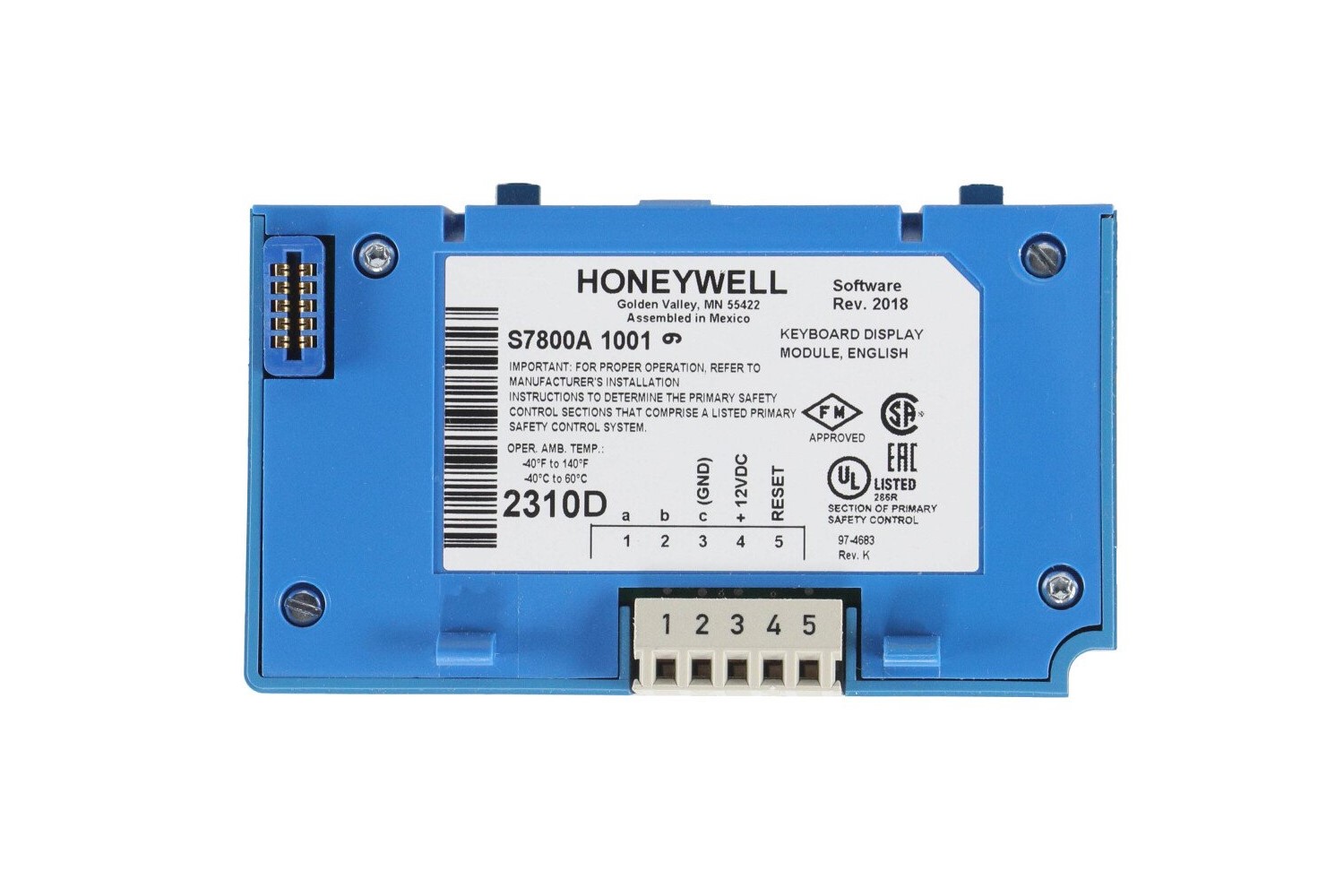

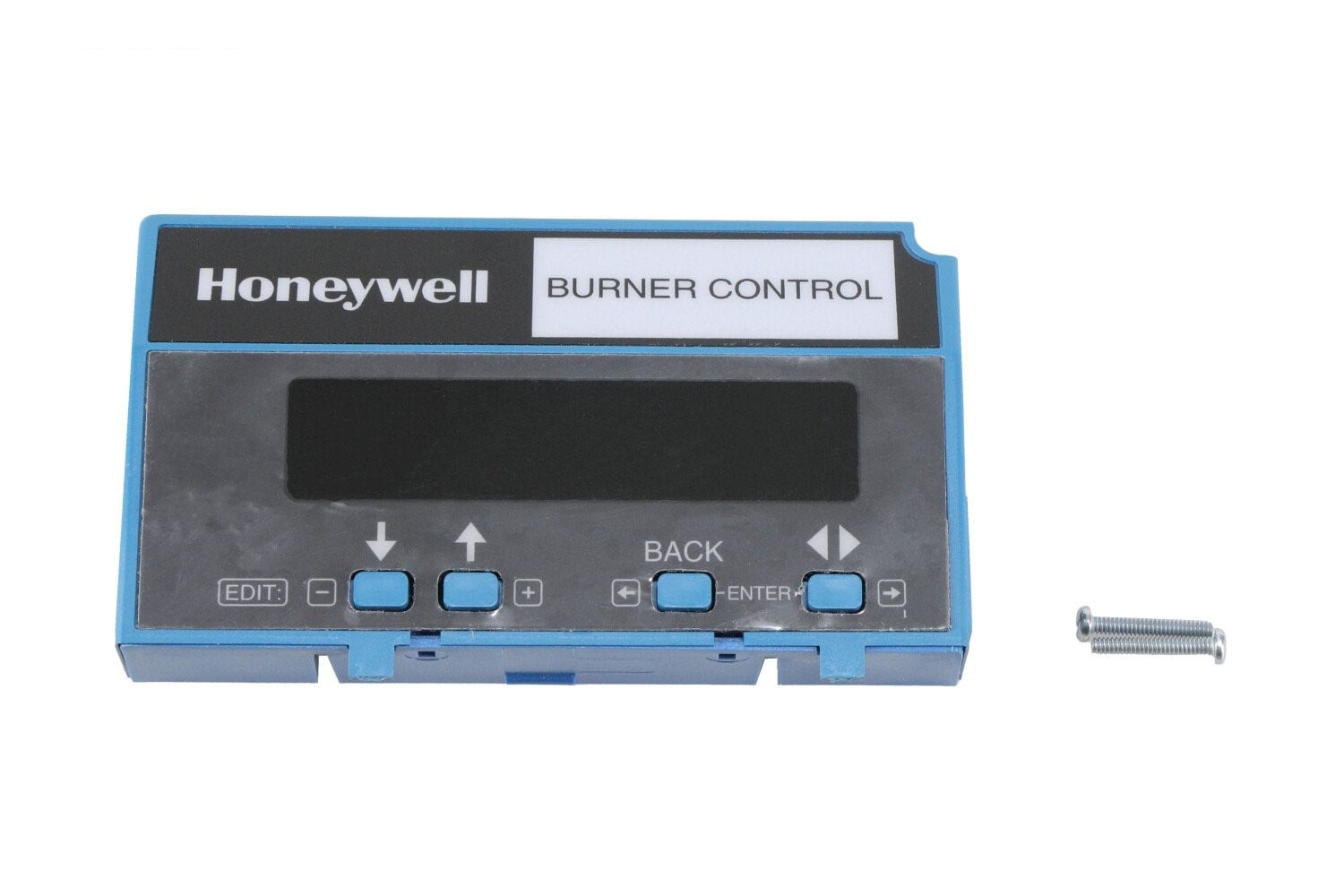

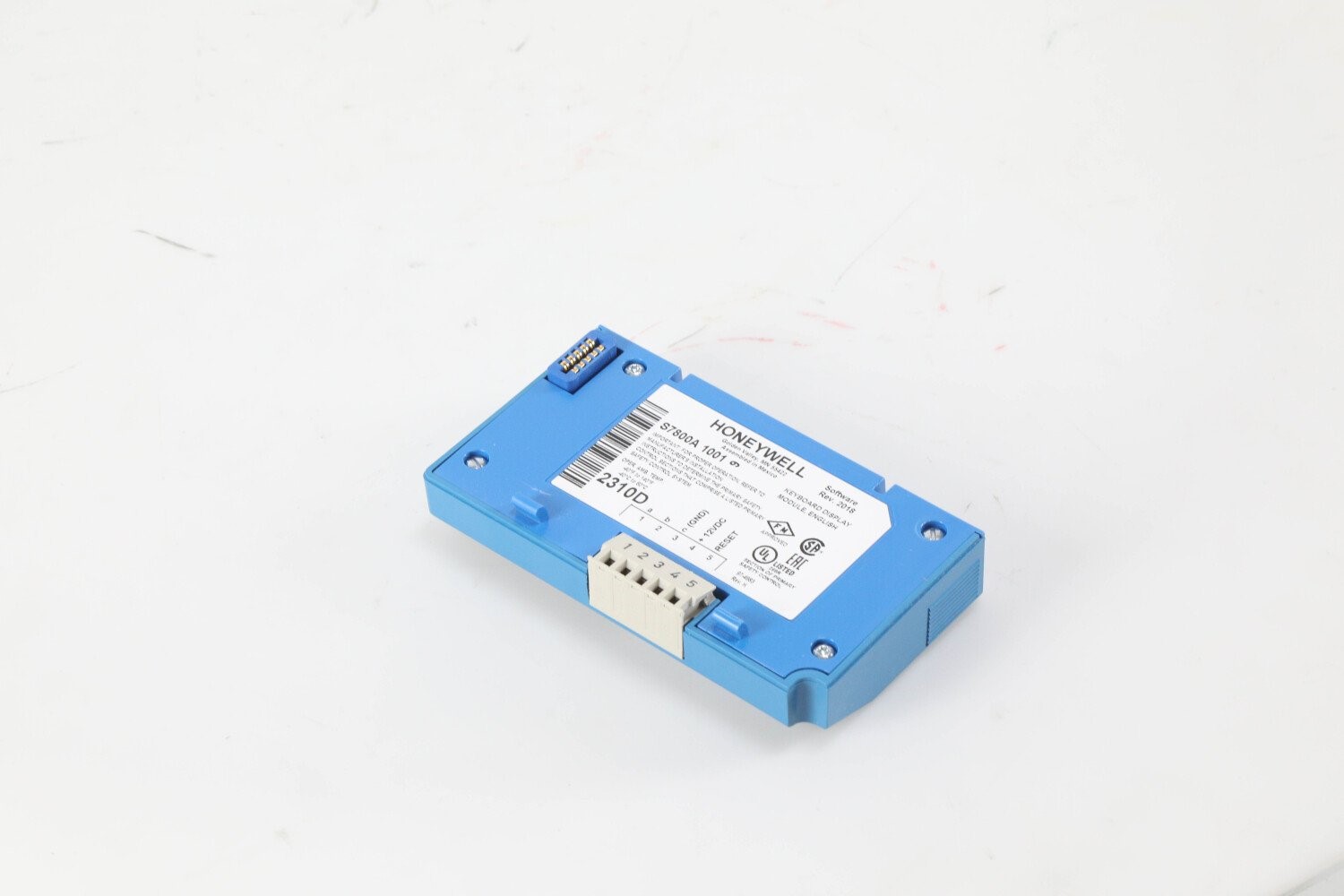

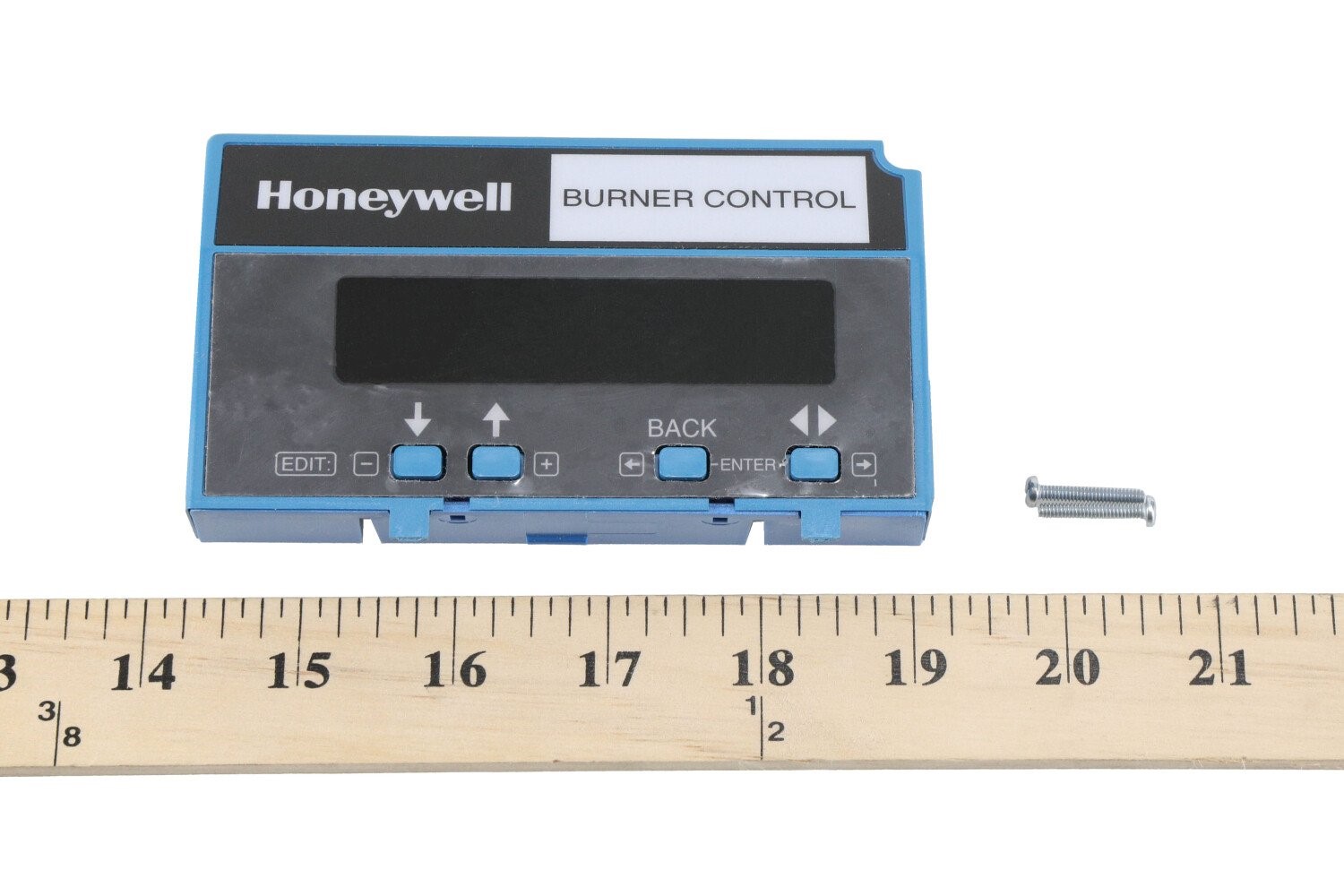

The Honeywell S7800A1001 STANDARD. Keyboard Display-English. Datasheet Honeywell S7800A1001 Keyboard Display Module Overview The Honeywell S7800A1001 Keyboard Display Module (also known as Honeywell S7800A1001/U) is a rugged burner control keyboard display designed to monitor and control flame safeguard systems. It provides current status of the burner sequence, timing information, hold status, and lockout information. Perfect for industrial and commercial applications, this S7800A1001 display ensures reliable control and diagnostics. Features & Functionality of S7800A1001 Displays first-out annunciation and detailed diagnostics via a 2-row by 20-column Vacuum Fluorescent Display (VFD). Shows selectable or preemptive messages; includes “Call Service” programmable message upon system lockout. Local or remote annunciation of operation, faults, and lockouts. Expanded annunciation with 24 limit and interlock LEDs for instant trouble-shooting. Remote reset capability. Available with optional ModBus feature on S7800A1001 series 5 and greater. Product Specifications Application Keyboard Display Dimensions (in.) 4 27/32 in. wide x 2 29/32 in. high x 29/32 in. deep Dimensions (mm) 123 mm wide x 73 mm high x 23 mm deep Weight (lb) 4 oz Weight (kg) 11 kg Comments English Language Approvals, Underwriters Laboratories Inc. Component Recognized, File No. MP268; Guide No. MCCZ. Approvals, Canadian Standards Association Certified, File No. LR95329-3. Voltage 13 Vdc peak fullwave rectified ( 20/-15%). Shipping and Storage Temperature Range (F) -40 F to 140 F Shipping and Storage Temperature Range (C) -40 C to 60 C Approvals, Federal Communications Commission FCC Part 15, Class B, Emissions. Vibration 5 G environment Approvals, Swiss RE Acceptable Approvals, Factory Mutual Report No. 1V9AO.AF. 7840 Display Screen Honeywell S7800A1001 Manual & Documentation Download the Honeywell S7800A1001 Manual / S7800A1001/U Manual (datasheet PDF) for full installation, operation, wiring diagrams, troubleshooting, and detailed specifications. Manuals cover “Burner Control Keyboard Display Manual” instructions, safety guidelines, and maintenance procedures. Applications & Compatibility The Honeywell S7800A1001 Keyboard Display integrates with many Honeywell flame safeguard and burner control systems. It’s ideal for systems requiring real-time status, fault annunciation, and manual intervention in burner control operations. If you need the S7800A1001/U variant, this model is fully compatible with local and remote annunciation modules Technical Specifications – S7800A1001 / S7800A1001/U Specification Detail Part Number S7800A1001 (also S7800A1001/U) Product Type Honeywell Burner Control Keyboard Display Module Operating Temperature -40°F to 140°F (-40°C to 60°C) Voltage 13 VDC peak full wave rectified ( 20/−15 %) Dimensions 4 27/32″ W × 2 29/32″ H × 29/32″ D (123 mm × 73 mm × 23 mm) Language English Certifications UL recognized, CSA certified, FCC Part 15 class B, Factory Mutual, etc. Display Type Vacuum Fluorescent Display, 2×20 characters
