ED510 Fireye LCD Display Module

ED510 Fireye LCD Display Module

$ 90.78
Follow:

Acoustic Benefits

Mid Tones
High Tones
Sound Absorption

Product Features

Pin Able
Easy To Install
Peel And Stick
Customizable
Recycled PET
Locally Made
Acoustic NRC
Quick Ship Item

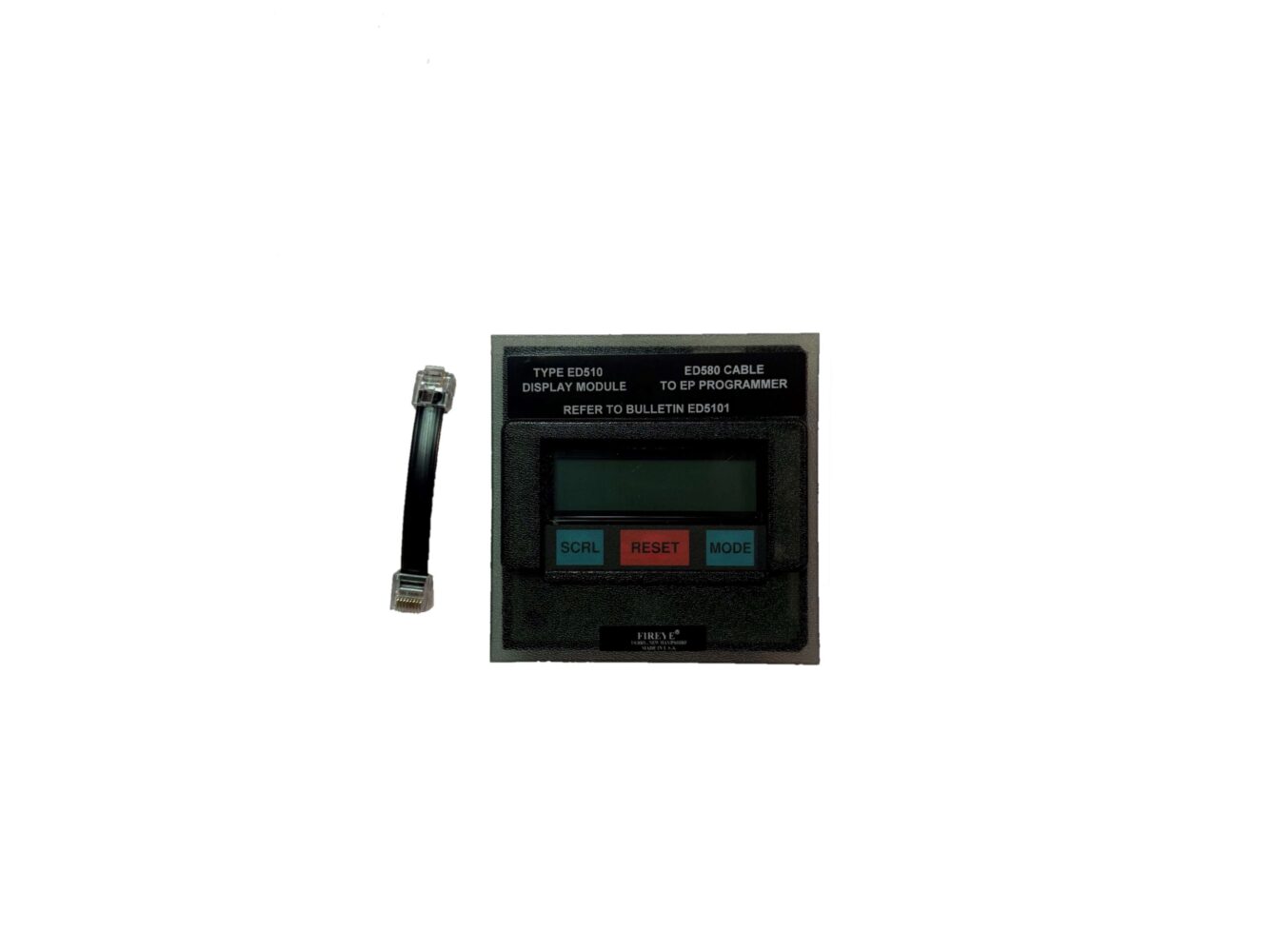

Overview The Fireye ED510 is a backlit LCD display module and operator interface designed for use with the Flame-Monitor, MicroM, and EP/EPD series burner management controls. It provides a user-friendly way to monitor real-time burner status, access diagnostic information, and review historical lockout data. The module features a rugged, weather-proof housing suitable for industrial environments and can be mounted directly to a programmer or installed remotely in a control panel. Features Backlit LCD Display: Two-line by 16-character alphanumeric screen for clear visibility in all lighting conditions. Tactile Keypad: Three-key dome keypad (SCRL, RESET, MODE) for navigating menus, resetting lockouts, and viewing history. Real-Time Monitoring: Continuous display of current burner operating status and first-out annunciation during lockout conditions. Lockout History: Stores a log of the last six lockout events with burner cycle and hour timestamps for simplified troubleshooting. Flexible Mounting: Can be mounted directly to EP style programmers or remotely using specialized kits. Durable Design: NEMA 4 rated weatherproof enclosure when used with a remote mounting kit. Specifications Model: Fireye ED510 Display Type: 2-Line x 16-Character Backlit LCD Operating Voltage: 120 VAC (supplied via control system) Operating Temperature: 32 degree F to 140 degree F (0 degree C to 60 degree C) Storage Temperature: -40 degree F to 158 degree F (-40 degree C to 70 degree C) Connector: RJ-style connector Included Cable: ED580-1 (1.25-inch) Dimensions: Approximately 3.63″ x 3.63″ (panel cut-out) Weight: ~1 lb Applications The ED510 is used in industrial and commercial combustion systems, including boilers and furnaces, to provide a local or remote interface for flame safeguard controls. It is required for EP style programmers and is an optional remote display for EPD and MicroM series modules. It is ideal for facilities requiring fast fault diagnosis and centralized burner status monitoring.
