R7849A1015 Honeywell Flame Amplifier

R7849A1015 Honeywell Flame Amplifier

$ 97.28
Follow:

Acoustic Benefits

Mid Tones
High Tones
Sound Absorption

Product Features

Pin Able
Easy To Install
Peel And Stick
Customizable
Recycled PET
Locally Made
Acoustic NRC
Quick Ship Item

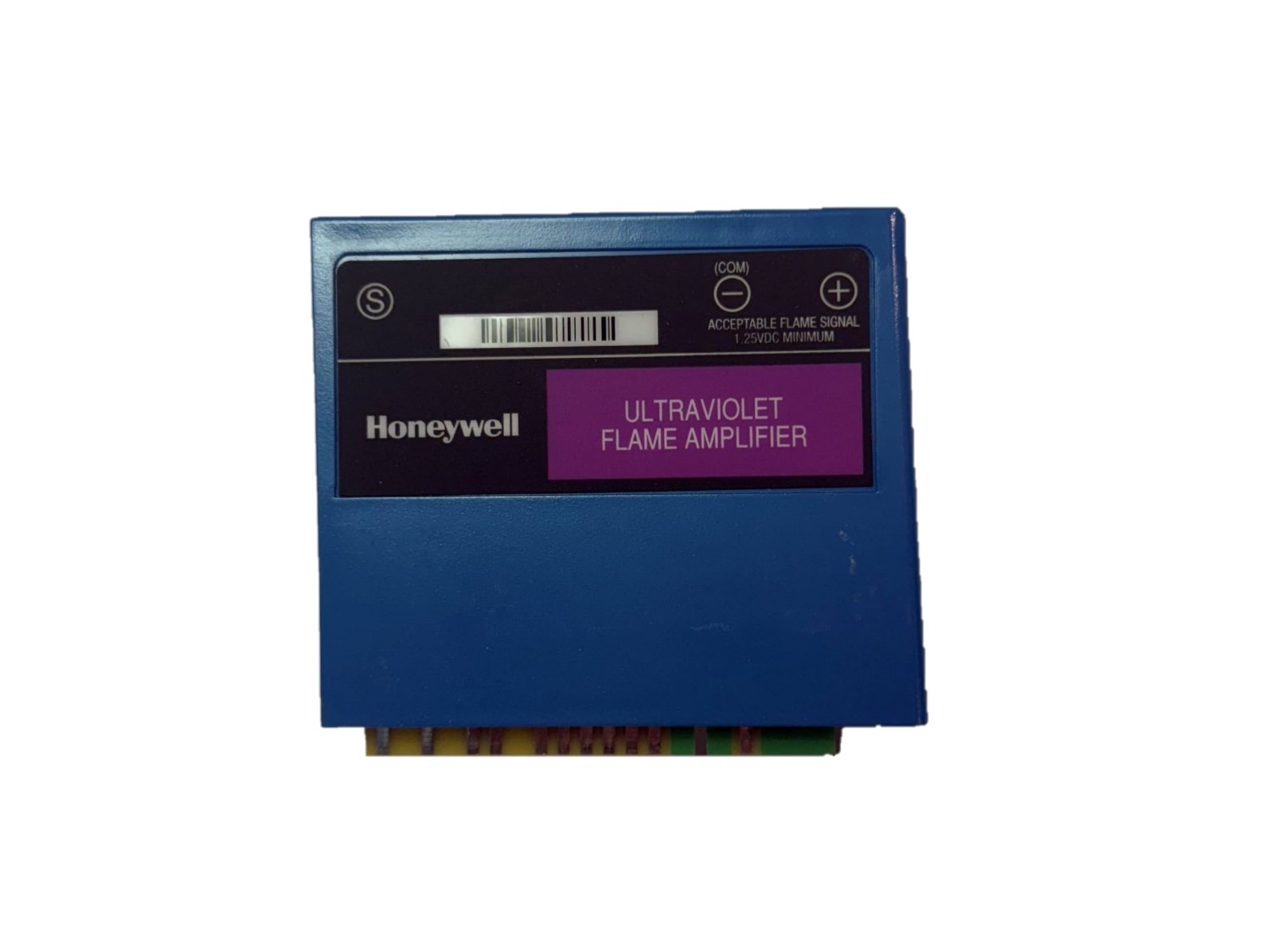

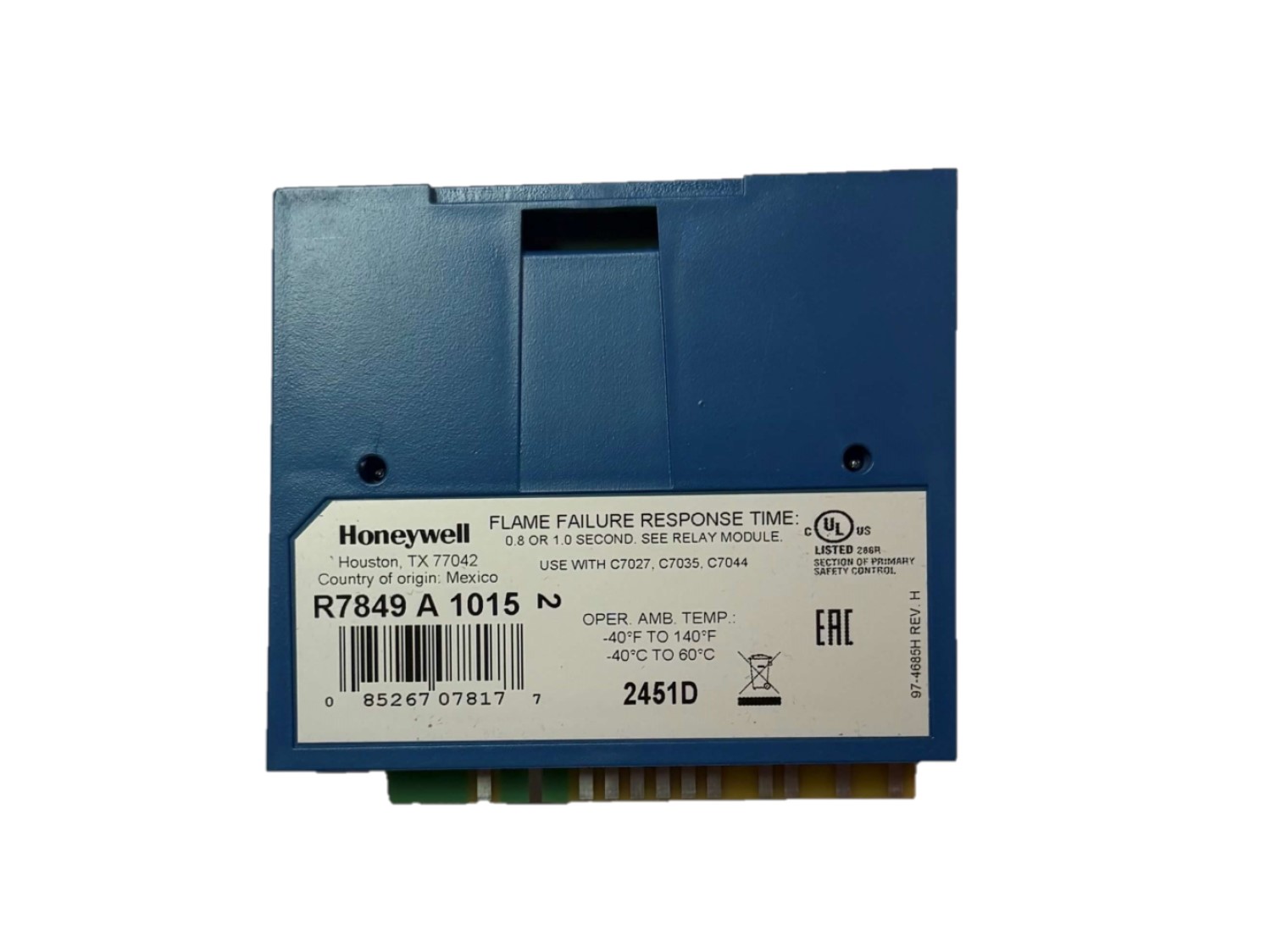

The Honeywell R7849A1015 0.8 OR 1 SEC Flame FAILURE RESPONSE TIME. Honeywell R7849A1015 Flame Amplifier – Ultraviolet UV Module (0.8 / 1.0-Second FFRT) Datasheet Product Overview The Honeywell R7849A1015 Flame Amplifier is a UV flame amplifier module designed for use with Honeywell 7800 Series relay modules. This ultraviolet flame amplifier provides fast and dependable flame detection with a selectable flame failure response time (FFRT) of 0.8 or 1.0 seconds. It delivers a 0-5 Vdc flame signal output and works with ultraviolet flame sensors such as C7027A, C7035A, and C7044. The R7849A1015 is color-coded purple for ultraviolet detection type and includes built-in flame signal test jacks for easy measurement of flame strength. With a keyed plug-in design, this Honeywell UV flame amplifier offers quick installation, accurate monitoring, and reliable protection for commercial and industrial burner safety systems. Key Features Fast response: Selectable 0.8 second or 1.0 second flame failure response time for enhanced burner safety. Ultraviolet detection: Works with UV flame sensors including C7027A, C7035A, and C7044. Flame signal monitoring: 0–5 Vdc flame signal output with built-in test jacks. Relay compatibility: Designed to plug directly into Honeywell 7800 Series relay modules with a keyed PCB edge connector. Color coded: Purple label identifies this as a UV flame amplifier for easy servicing. Durable construction: Solid-state design ensures reliable operation in demanding burner environments. Technical Specifications Specification Detail Model Number Honeywell R7849A1015 Flame Amplifier Flame Failure Response Time (FFRT) 0.8 or 1.0 seconds Flame Signal Output 0.0 – 5.0 Vdc Detection Type Ultraviolet (UV) flame amplifier Compatible UV Sensors C7027A, C7035A, C7044 Relay Module Compatibility Honeywell 7800 Series relay modules Flame Signal Test Jacks Yes – for measuring flame signal voltage Label / Color Purple label (UV flame amplifier) Operating Temperature −40°F to 140°F (−40°C to 60°C) Storage Temperature −40°F to 150°F (−40°C to 65°C) Humidity Rating Up to 85% RH, non-condensing Applications Industrial and commercial burner safety control systems Systems requiring ultraviolet flame detection with Honeywell UV sensors Replacement flame amplifier for Honeywell 7800 Series relay modules Installations needing fast 0.8 second FFRT flame amplifier or 1.0 second flame amplifier response Applications where flame verification is needed via 0–5 Vdc flame signal test jacks Benefits Quick flame detection with selectable 0.8 or 1.0-second FFRT Accurate monitoring using 0–5 Vdc flame signal output and built-in test jacks Easy installation with keyed plug-in PCB connector Improved reliability from solid-state ultraviolet flame amplifier design Clear identification with purple UV detection label

Download

Installation Guidelines

Always make sure the wall has been wiped clean prior to installation.

Temporary installation :

3M (Picture hanging strips) or double sided tape can be used.Glue or staple picture hanging strip to the back of the acoustic panels. Because of their porous sound absorbing nature they do not stick as well to the 3m/double sided strip as the wall will.

Download Installation Guide
Permanent installation:

A construct glue such as liquid nail or Selleys quick grip can be used. We also sell S7800A1001 Honeywell Keyboard Displaywhich provide high fast tack and have been specifically designed for acoustic panels.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.Please contact us to for commercial installation quantities as these panels are also sold in 2440mm x 1220mm sheets.
